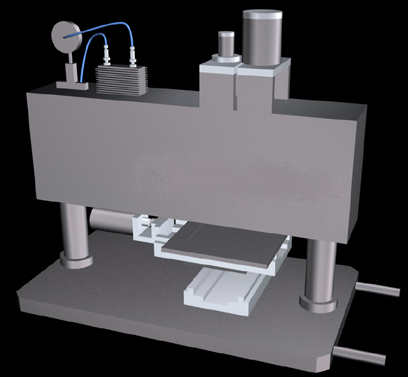

Dot-matrix master Shooting Machine
Dot-matrix master shooting machine in resolution(300DPI, 600 DPI, 1200 DPI) according to different customer's requirement., 2400 DPI also is available with customized mold.
Dot-matrix Hologram Technology Master shooting system composed of opetical tabel, He-Cd laser, programmable controller, acurate platform, Optics bridge, computer and software. This sytem is intelligentized engraving system. After you load engraving data in it'll work automaticly untill finish the job.
Specifications:
1. Platform demension: 700mmX500mmX700mm
2. Weight: 250 KG
3. Power: 220V, 1KVA
Characteristics:
1.Shape of Engraved Dot: circle or sqaure(different mold)
2. Engraving exposure speed: 20 ~ 80 dot/second(300dpi 600dpi 1200dpi);
3. Seperation of color: Plain Rainbow or RGB(different mold)
4. Engraving area: 160 x 160 mm
5. Resolution: 150dpi, 300 dpi, 600dpi, 1200dpi
6. Mininum viewing angle: 0.25 degree
7. Setting of viewing angle: 0 ~ 360 degree
8. Zoom in Zoom out effect: circle, square, rhombus, polygon, word, curve
9. Movement of curtain effect: two direction, one direction, or XY_ direction
10.Pearlescent effect: voluntariness polygon movement of ray, random kinetic movemnt ray, combination of kinetic movemnt ray
11. Revolving ray effect: whatever revolving shape of curve, revolving effect of line, etc
12. Projective effect: whatever word, whatever font, recombination of image projection flex
13. Switch effect: Different flips switches wtih different viewing angle
14. Three-dimensional effect: word has fasle three-dimensional effec
15. Micrn text effect: line of font can be 0.02mm, letter can be in size of 0.2mm
16. Random matrix: dots blink in dieerent viewing angle

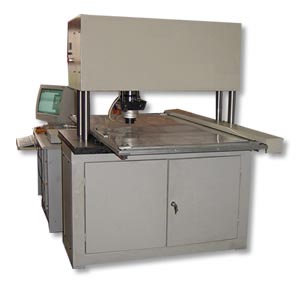

Hologram Technology Master Recombination Machine(for dot-matrix master)
This machine has small floor space, the recombination master is large in size. The computer automaticallies control, can recombine different shape on the same plate. The recombination is high in precision. It is reliable that the machine is steady
Specifications:
1. Maxinum recombination area: 650mm*1250mm
2. Recombination precision: 0.01mm
3. Recombination function: Misplace, slope , blank, reverse
4. The computer automaticallies control, Windows operates interfaces
5. Power: 80V/2KW
6. Dimension: 1800mm*1300mm*1750mm
7. Weight: 1300 kg
|
