2D/3D Hologram is made up of multiple two dimensional layers with hologram images visually
placed one behind another with visual depth to produce an effect of three-dimensional hologram
structure. It has very good visual depth between different layers and shininess on first layer.
Non Tamper evident Transparent Hologram 1 2 3 4 5 Tamper evident Transparent Hologram 1 2 3 4
Morie hidden text Hologram(
Mole hidden text ). 2D/3D master, two layers, two color in forground, one color in background.
There're two kinds of hidden text or images available for Hologram Label. This two kinds of hidden features increase Hologram Label security capability agaist counterfeit strongly.First type of hiddnen text in side Hologram Label is laser readable hidden text(image), which also called laser beam hidden text. This kind of hidden text of image on Hologram Label just can be seen with help of laser pointer (laser reading pen). Another type hologram hidden text called Mole hidden text which has to see hidden text with help of Decode film. We can read simple text of image once we cover some area of sticker by this piece of Decode film.

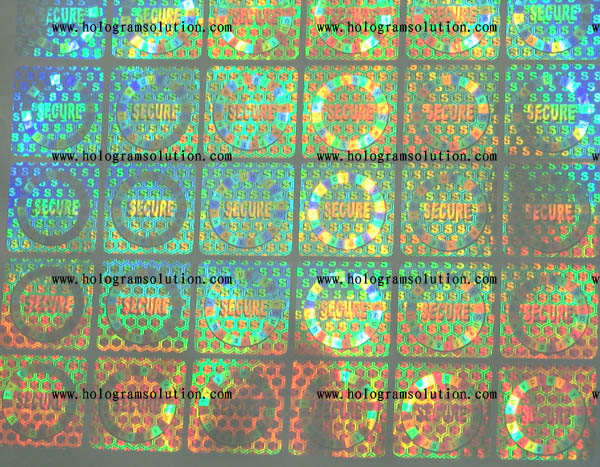

We can see hidden text displayed when we cover Mole Decode film onto Hologram Label. The hidden text is 'SECURE'. When you remove the Decode film, the word 'SECURE' disappeared
Specification & available extra security features:
Hologram master type: 2D/3D hologram, 2 layers, 2 colors hologram, Morie hidden text
Size and shape of sticker: 20mm in dia, circle
High security Sequential number: Eengraved Transparent Serial Number
Base material color: Silver, Golden, Red, Blue, Green etc
Feature of base material: Tamper evident, temper-proof, High security 'VOID' , 'ORIGINAL', 'CANCELED', ' Comb' Pattern Released , Non Tamper Evident Hologram
Thickness of base material: 25 micron, 36 micron, 50 micron
Other featrures: Red or Black Overprinting Released
Made in: China
Protect your product from potential counterfeiters with this highly sophisticated security hologram. Material Tamper evident, temper-proof, High security 'VOID' , 'ORIGINAL', 'CANCELED', ' Comb' Pattern Released with Black Overprinting Serial Numbe, Eengraved Transparent Serial Numberupon removal preventing illegal use and nullifying any guarantees associated with holograms integrity. Benefit from this hologram on documents, collectibles, ID Cards, retail goods and other important assets.
Type of some embossed holograms:
2D/3D Hologram design is created from flat artwork using line art by software in computer.
Then we hang output film and developed galss on master lab to record image onto glass master.
It contains several optical layers with 2D hologram images visually placed one behind another
resulting in a 3D effect because each layer has different distance to our eyes with visual depth.
Virtually any existing design or logo can be made into a 2D / 3D hologram with depth and parallax.
We can work with you to create 2D/3D artwork by several type software, and also can break
your existing art into color separations and layers which contain 2-4 layers and up to 6 colors.
2D Hologram is made up of two dimensional images. The hologram images are assigned different colors and position in one layer. It just has one layer on hologram image, without visual depth.
True Color Hologram
True Color Hologram is made up of photographic quality art-work. If counterfeiters can't get the original photo, they can't duplicate hologram close to original one. It's a very good way to achieve anti-counterfeit performance by true color hologram.
Kinetic Movement Hologram
Kinetic movement hologram image can be made both by 2D/3D and dot-matrix type hologram. 2D/3D hologram kinetic movement comes a sequential different viewing angle hologram lines with different color seperation. Dot-matrix hologram kinetic movemnt effect is more smoothly. With our special digital hologram and 2D/3D hologram technologies, customized design logo or graph can be incorporated onto good kinetic movement hologram-patterns.
Dot-Matrix Hologram allows implementing unlimited computer controlled and laser beam engraved dots dots in hologram. This Dot-matrix hologram is the result of designs comprising many tiny dots, where each dot is a separate diffraction grating. They create a beautiful impact of variable images.
Laser Beam Reveal Hidden Text in Hologram Label & Mole Hidden Text in Hologram Label
Laser reveal Hidden Text(image) and Mole Hidden Text in Hologram, Security Flash Light
Hidden text or image feature contains unique encrypted images or text, invisible to the naked eye and detectable by means of a pocket laser reader. Laser readable hidden text or image just can be seend with special laser pointer (laser reader made in China). Mole hidden text just can be revealed when you cover decode film on the Hologram Label encode area. Flash light is an movement security ray come from deep background.
Flip Flop Hologram 1 2 3 4
Flip-Flop hologram can display two images from different viewing angle. When the viewing angle changes horizontally (left to right) or vertically (upside and down), different images evolve through the hologram.
Micro text or micro image in hologram is difficult to be seen clearly by naked eye . It's close visual inspection clearly by by magnifier.
